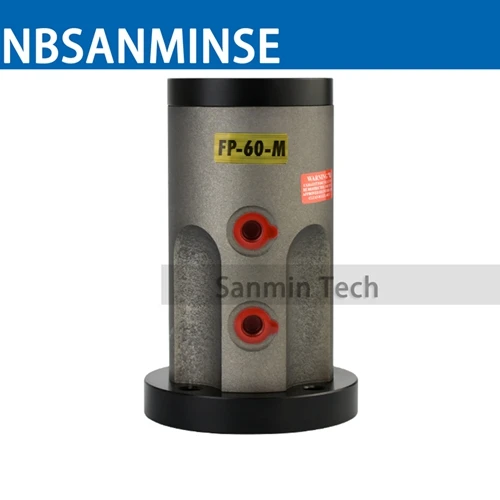

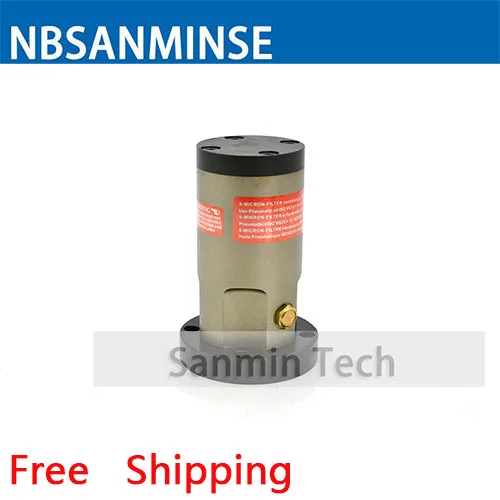

- nbsanminse fp m pneumatic air
Model Number: FP - M
Brand Name: NBSANMINSE
Type: Pneumatic Piston Vibrator
Noise: Low noise
Frequency: 10 ~ 60 Times Per Minute
Application: Screening , Conveyer , Etc
Port Size: 3/8
Work Pressure: 0.15 ~ 0.8 Mpa
Big powe with lower noise
Standard frequency is from 10 to 60 times per minute .
Excitation force is from 484 N to 13800 N
The frequency and vibration amplitude can be adjusted via regulating the working pressure .
The normal maximum working pressure is 150 degrees centigrade .
( We can also make special type , such as 200 degrees centigrade ) .
The pneumatic hammer can be used for severe environment .
Hopper feed , Casting industry Pipelining , Compaction , Screening , Conveyer , Etc
Aluminum shell with special high grade grease , long lifetime , is suitable for different application situation
Aluminum shell and base
Lead bronze piston
Steel spring for starting equipment
Noise reducing and exhausting system
Female thread hole for installing
A spring is used in the vibrator body to aid starting. Minimum operating pressure 2 Bar (29 P.S.I.).
