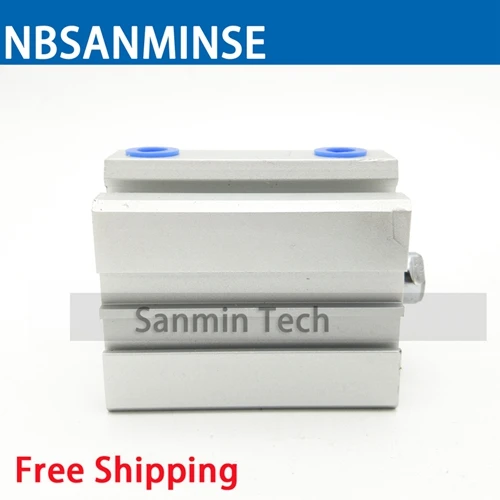

follow-up.ruSDA Series Without Magnet 100mm Bore Size Compact Cylinder AirTAC Type Double Acting Pneumatic Parts NBSANMINSE
Description:
Type: Cylinder
Model Number: SDA
Brand Name: NBSANMINSE
Bore Size mm: 100 mm
Acting Type: Double Acting
Fluid: Air
Operating Pressure: 0.1 ~ 1.0MPa (15~145psi)(1.0~10.0bar)
Proof Pressure: 1.5MPa (215psi)(15bar)
Temperature: -20 ~ 80C
Speed Range: 30 ~ 500 mm/s
Cushion Type: Bumper
Magnet: With out Magnet
The images shown are not all the actual item and are for your reference only
Product Feature
1. Manufactured by our enterprise
2. Riveted structure is adopted to connect the cylinder body and back cover , and piston and piston rod to make it compact and reliable ;
3. The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing , forming an excellent abrasion resistance and durability .
4. The seal of piston adopts heterogeneous two-way seal structure . It has compact dimension and the function of grease reservation .
5. Compact structure can effectively save installation space .
6. There are magnetic switch slots around the cylinder body , which is convenient to install sensor switch
7. Mounting accessories with various specifications are optional.
Specification
|
Bore Size (mm)
|
12
|
16
|
20
|
25
|
32
|
40
|
50
|
63
|
80
|
100
|
|
|
Acting Type
|
Double Acting
|
||||||||||
|
Fluid
|
Air ( to be filtered by 40um filter element )
|
||||||||||
|
Operating Pressure
|
Double Acting
|
0.1 ~ 1.0 MPa (15 ~ 145 psi )(1.0 ~ 10.0 bar)
|
|||||||||
|
Proof Pressure
|
1.5 MPa (215psi)(15bar)
|
||||||||||
|
Temperature C
|
-20 ~ 80
|
||||||||||
|
Speed range mm/s
|
30 ~ 500
|
||||||||||
|
Cushion Type
|
Bumper
|
||||||||||
|
Port Size
|
M5X0.8
|
1/8”
|
1/4
|
3/8
|
|||||||
