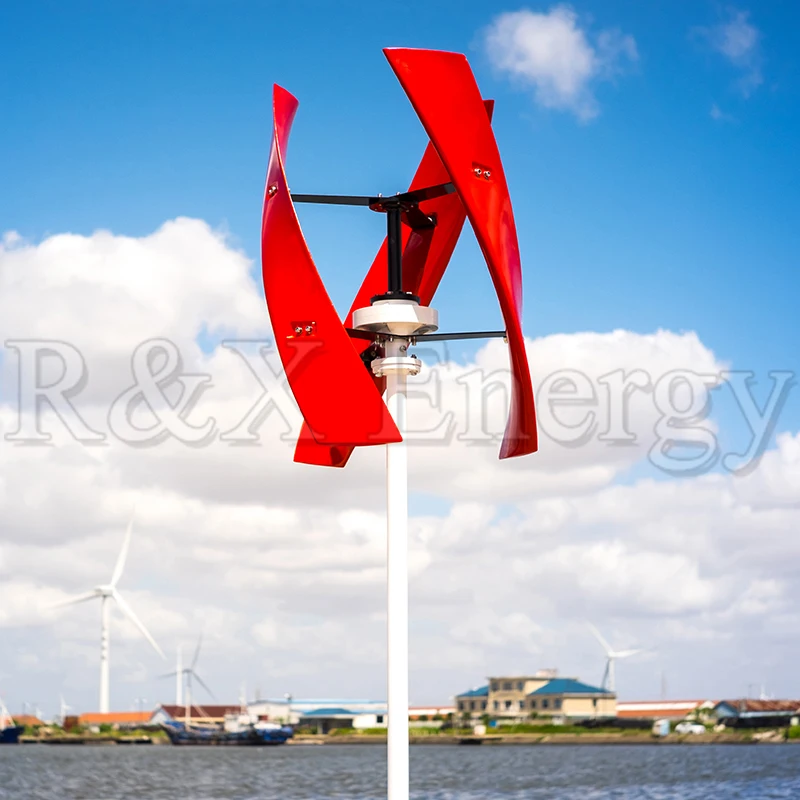

- r x 400w ce vertical wind turbine x shaped energy power generator white 24v with free controller queit noiseless
Brand Name: JSRX ZXX
Model Number: RX-400X
Shaft Material: Stainless Steel
Type: Wind Power Generator
Mounting Base: With Mounting Base
Rated Voltage: 12v/24v
MPPT controller: Free Charge
Genuine power: yes
R&X Energy Technical Group Co., Ltd
We specialize in supplying renewable energy products (solar power, wind power, electrical accessories, etc.) around the world. There are about hundreds of types of wind generator available in our company. We owns seven branch companies in Zhejiang, Guangdong , Jiangsu and overseas. Also, R&D, studying, producing, sales and after-sales services have been integrated in its whole product chain. Hope to be your trustworthy supplier in China.
1)maglev generator Coreless generator, generating efficiency. 2)3 blades with curved design,low start spped, low noise. 3)20 years use life and 1 year for warranty, warmly welcome to our factory. 4)Small ,light ,stable and safe, special control principle expended the wind speed to 2.5 ~ 25m/s. 5)CE RoHS TUV SGS. 6)High efficiency, matching with hybrid generator system with solar panels for home use, LED street light, Garden lights, boat,camping etc.
Product technical data
1)Started wind speed (m/s):1.3 m/s 2)Cut-in wind speed (m/s): 2.5 m/s 3)Rated Wind speed (m/s): 10 m/s 4)Rated voltage(AC): 12/24V 5)Rated power(W): 600W 6)Max power(W):650W 7)Rotor Diameter of Blades(m): 0.6m 8)Product assembly weight (Kg) <20Kg 9)Blades height(m): 0.8m 10)Safe wind speed (m/s) ≤40m/s 11)Blades quantity 3PCS 12)Blade material glass/basalt 13)Generator:Three phase permanent magnet suspension motor 14)Control System: Electromagnet 15)Mount Height(m):2~12m 16)Generator protection grade IP54 17)Work environment temperature: -25ºC ~+45ºC 18)Work environment humidity ≤90% 19)Altitude: ≤4500m 20)Overspeed protection: Electromagnetic brake 21)Overload protection: Electromagnetic brake and the unloading unit
1)Started wind speed (m/s):1.3 m/s 2)Cut-in wind speed (m/s): 2.5 m/s 3)Rated Wind speed (m/s): 10 m/s 4)Rated voltage(AC): 12/24V 5)Rated power(W): 400W 6)Max power(W):450W 7)Rotor Diameter of Blades(m): 0.6m 8)Product assembly weight (Kg) <20Kg 9)Blades height(m): 0.8m 10)Safe wind speed (m/s) ≤40m/s 11)Blades quantity 3PCS 12)Blade material glass/basalt 13)Generator:Three phase permanent magnet suspension motor 14)Control System: Electromagnet 15)Mount Height(m):2~12m 16)Generator protection grade IP54 17)Work environment temperature: -25ºC ~+45ºC 18)Work environment humidity ≤90% 19)Altitude: ≤4500m 20)Overspeed protection: Electromagnetic brake 21)Overload protection: Electromagnetic brake and the unloading unit
Please refer to the actual size.Manual measurement errors cannot be avoided.The error of 1-2cm is within the normal range.
RX-400X or RX-600X
Product Customs Duty
1)The price you paid for the item excludes any customs tax.We will not shoulder any duties in destination country. Please check with your country customs office to determine what these additional costs will be prior to bidding/buying
Product After-sale Service
1)Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received. 2)Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. 3)Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. 4)If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.
Details Pictures Shows
Related Free MPPT Controller
MPPT boost controller for wind turbine 300w 500w 12V/24V auto switch off grid charge controller Indicator lamp Red light: When connect to battery, it will flash once. When brake or dumping load, it will on. Yellow light: When boosting charging, it will flash. When the currenct is more, the flash is more quick.
What is MPPT?
Maximum power point tracking (MPPT) is a technique used commonly with wind turbines and PV solar systems to maximize power extraction under all conditions. For 12V wind turbine, it begin to charge at 8-9V For 24V wind turbine, it begin to charge at 17-18V
There are total 5 wires output of the controller 3 blue wire : connect with wind turbine 1 red wire: connect with battery "+" 1 black wire: connect with battery"-"
